Delta

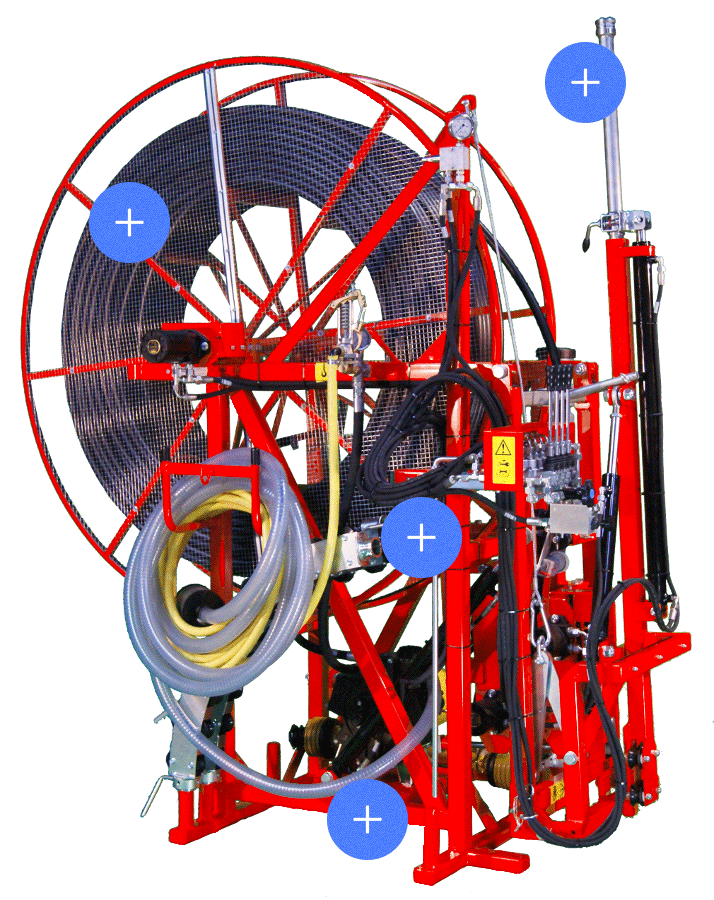

Homburg Draincleaner Delta: More functions - greater ease of operation

Homburg Draincleaner DELTA provides greater ease of operation. Compared to the Homburg Draincleaner JUNIOR the DELTA version also offers hydraulically operated height adjustment, extension, retraction and folding of the drainage arm, and length adjustment of the guide arm.

Product configurator Draincleaner Delta

Technical specs

Attachment	three-point lifting device Cat. 2

Hydraulics
- Hydraulic system	2 hydraulic motors / 2 cylinders 4-way steering valve / 2 control valves, one of which is pressure-compensated
- Tractor hydraulics	single-acting steering valve with pressureless return or double-acting steering valve
- Oil required	5 - 7 litres/min

Water pump	5-fold membrane pump
- Drive	PTO - 1 3 / 8
- Max capacity	115 litres/min - 50 bar - 540 rpm
- Working capacity	70 - 80 ltr/min - 35 bar - 400 rpm

Hose
- Cleaning hose	300 m HPE-hose Ø 27 mm x 3,5 mmm
- Suction hose	10 m 1 ¼” hose with steel inlay with filter and floater
- Return hose	10 mtr ¾” hose
- Nozzle	12 + 1 openings of 2,0 mm metre counter

Drive	hydraulic motor with 2 driving wheels and 2 pressure wheels
- Speed control	continuously variable
- Work speed	max 20 - 30 m / min

Hose push in / pull out	hydraulic for pushing in / pulling out

Hose manipulation	manual
	manual hydraulic height adjustment, hydraulic length adjustment
	horizontally adjustable

Weight
- Empty	approximately 480 kg
- Filled with water	approximately 580 kg
- Dimensions	l: 1,10 x w: 1,80 x h: 2,25 m

Warranty	1 year
	instruction book with parts list
